90°C NON-SHIELDED
JUMPER CABLE

(15kv/25kv/35kv)

Kalas 90°C NON-SHIELDED JUMPER CABLE<br />
Suitable as a temporary flexible power cable for temporary By-Pass connections.<br />
CONSTRUCTION<br />
Conductor: Annealed Flexible Bare Copper per ASTM B3 & ASTM B172 or Tinned Copper per ASTM B33 & ASTM B172<br />
Separator: Semi-conductive tape separator between the copper and ERP Insulation<br />
Insulation: Thermoset Ethylene-Propylene Rubber (EPR)<br />
BK/JC/8.20<br />
Specifications contained herein reflect current data and are<br />
subject to change. Values are nominal and/or approximate.<br />
ISO 9001:2015 CERTIFIED<br />
ISO 14001:2015 CERTIFIED<br />
MADE IN THE USA<br />
LISTED<br />
 Kalas

Construction

Conductor material: Annealed Flexible Bare Copper per ASTM B3 & ASTM B172 or Tinned Copper per ASTM B33 & ASTM B172
Gauge: 2ga 15kV, 1/0 15kV, 2/0 15kV, 4/0 15kV, 1/0 25kV, 2/0 25kV, 4/0 25kV, 1/0 35kV
Insulation material: Thermoset Ethylene-Propylene Rubber (EPR)
Separator material: Semi-conductive tape separator between the copper and EPR Insulation
Operating Temperature: -60°C to 105°C
Meets Requirements:  ASTM F2321 – Flexible and Rigid Insulated Temporary By-Pass Jumpers





Applications

Suitable as a temporary flexible power cable for temporary By-Pass connections.

Features

  • EPR CV-cured jacket resists abrasion, heat, moisture, and ultraviolet rays
  • Annealed copper stranding is extra flexible
  • Flexible at low temperatures
  • Water-resistant
  • Standard Color: Orange

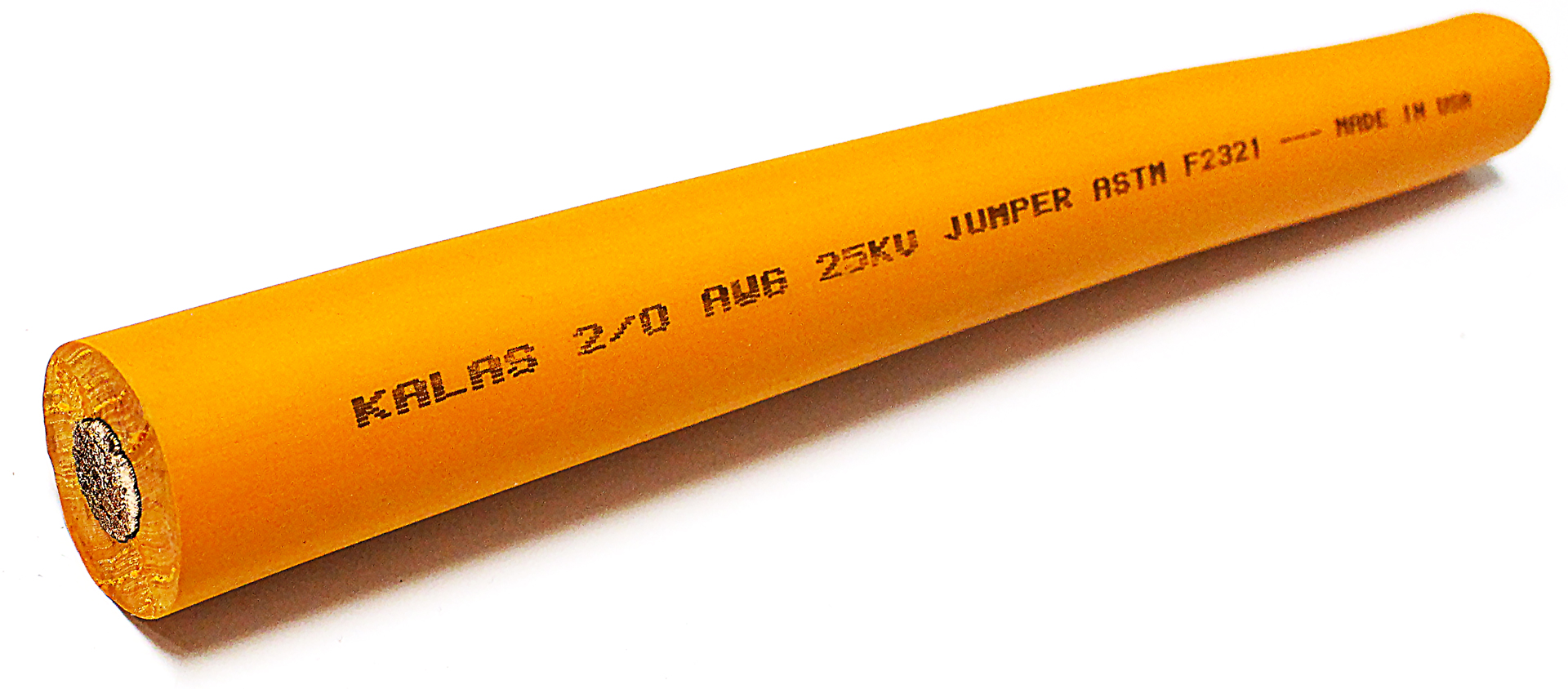

  • Standard Print (example): KALAS 2/0 AWG 25KV JUMPER — MADE IN USA – Custom print and custom colors available upon make-to-order request
  • 3rd party performance tested

View Complete Specifications
